>> Equipment Introduction

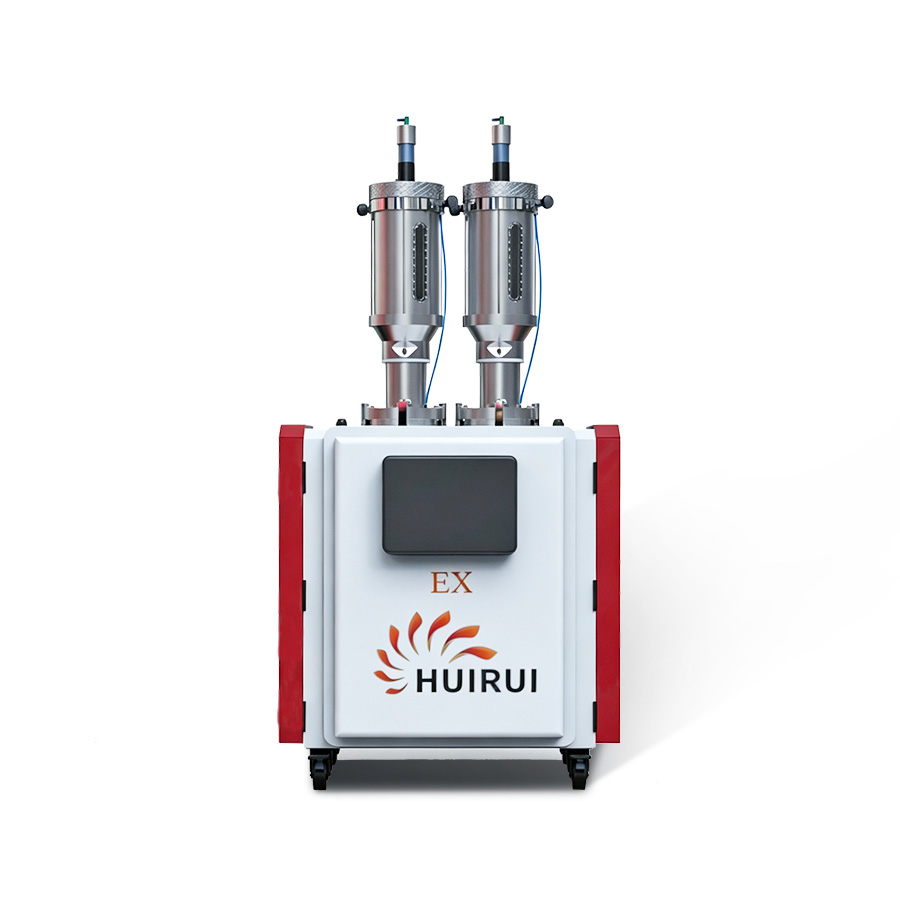

Developed to address technical challenges in fine powder conveying and high-risk production requirements, the double-barrel rotary explosion-proof powder feeder is compatible with fine powders ranging from 1 to 300 μm. It integrates five core performances including explosion protection, high precision, anti-agglomeration, low residual volume and inert gas protection, thoroughly solving four major pain points of conventional equipment: powder clogging, dust emission, insufficient conveying accuracy and explosion hazards, thus delivering a compliant, efficient all-in-one solution for precision powder conveying.
Core powder-contacting components are made of 316L stainless steel, featuring acid and alkali resistance as well as corrosion resistance, suitable for various special powders. Equipped with a fully sealed cavity and inert gas protection system, the equipment achieves zero gas leakage, prevents powder oxidation, and ensures production safety and powder purity. Fitted with two independent 5L powder barrels and an explosion-proof servo drive system, it is also equipped with intelligent heating stirring, low-level early warning and real-time pressure monitoring modules with high intrinsic safety.
It is widely applied in lithium battery, 3D printing, chemical and pharmaceutical industries, and applicable to the conveying of flammable, explosive and moisture-prone ultrafine powders such as ferrocene, metal micropowder and graphite powder.
>> Equipment Advantages

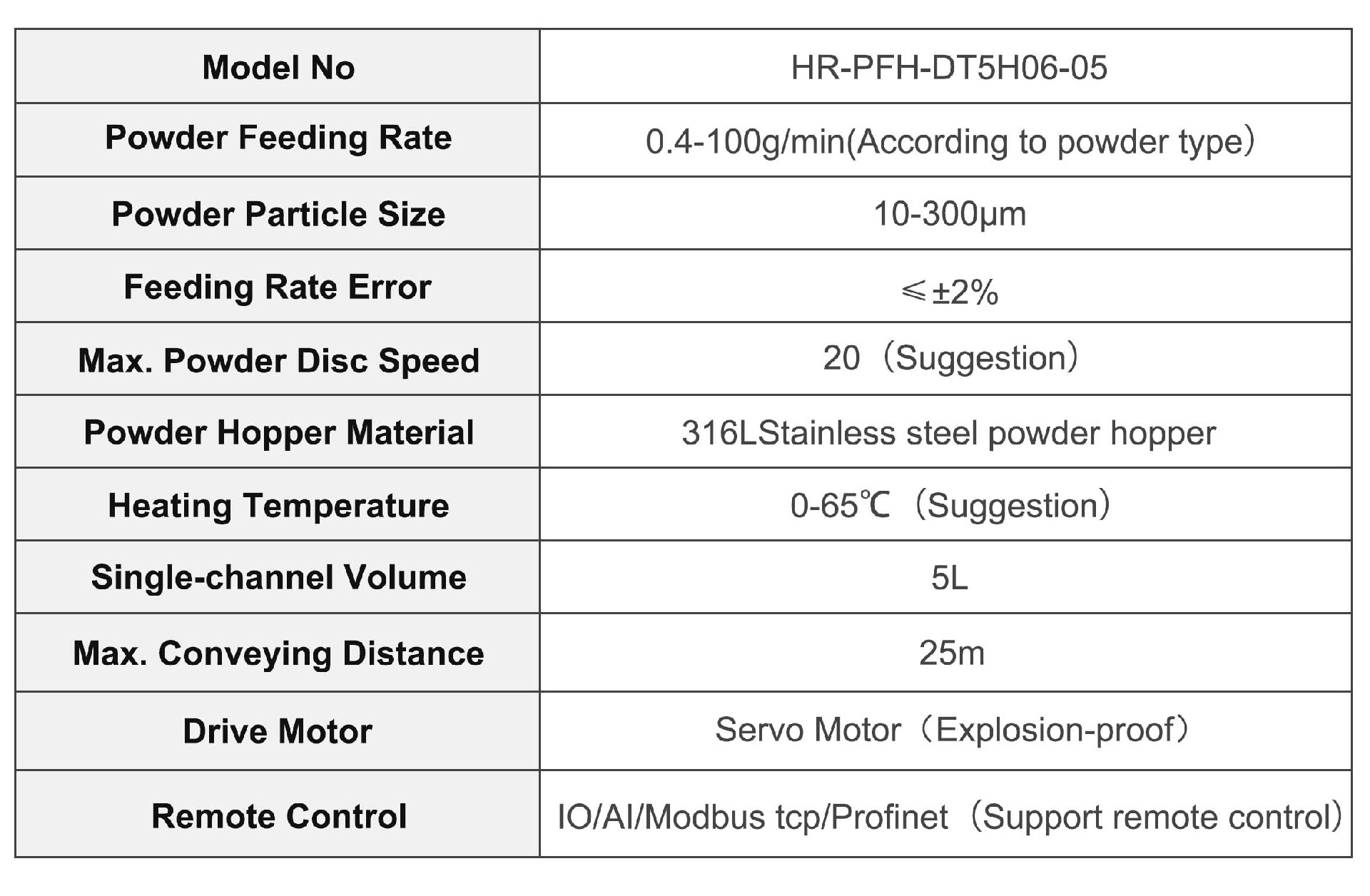

>> Equipment Parameters
>> Application scenarios

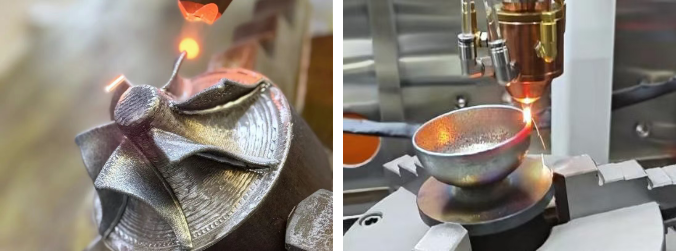

1.Metal 3D PrintingIt
supports uniform conveying of spherical metal powders including titanium-based, aluminum-based and nickel-based powders, effectively ensuring printing density and dimensional accuracy.
2.New Energy Lithium Battery Industry
Compatible with ultra-fine lithium battery powders such as lithium iron phosphate and silicon-carbon anode materials. Adopting a fully enclosed inert explosion-proof system, it isolates air to prevent material oxidation and avoid dust explosion risks, accurately controls the proportion of electrode slurry, and guarantees stable cell quality.

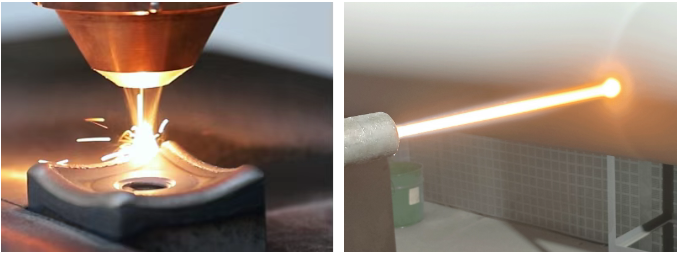

3.Laser Cladding & Thermal Spraying
Applied to precision coating repair of high-end power equipment, it enables long-distance stable delivery of metal and ceramic powders, ensures uniform and dense coatings, and greatly extends the service life and operational performance of high-end equipment.

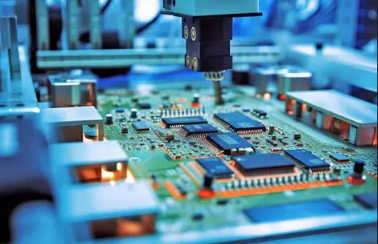

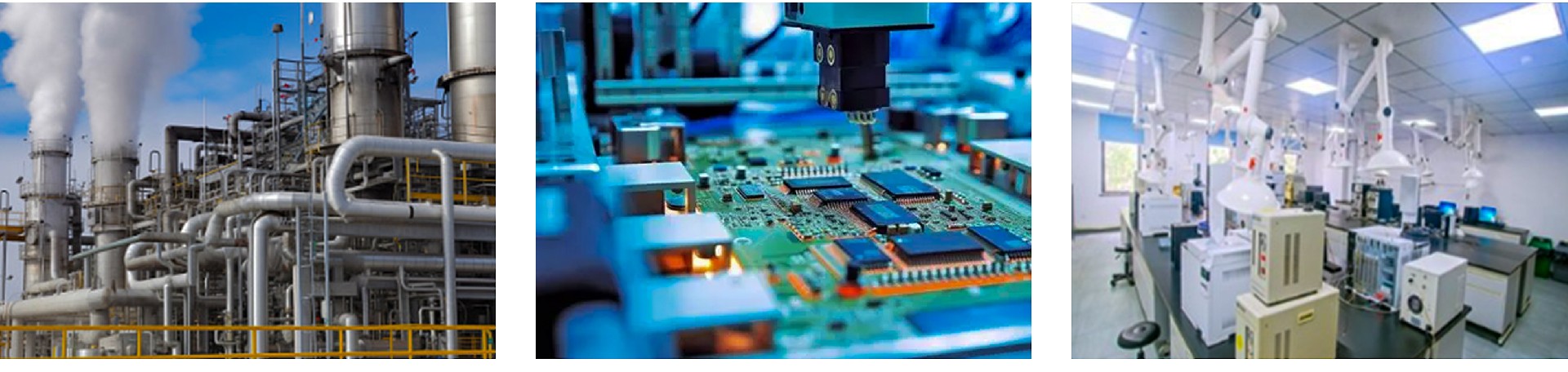

4.Fine Chemicals, Semiconductors & Pharmaceuticals
Suitable for conveying easily agglomerated, flammable, explosive and highly corrosive chemical raw materials and pharmaceutical API powders. Featuring corrosion-resistant body and fully enclosed leak-proof design, it maintains powder purity and safeguards workshop production safety.
