>>Product Introduction

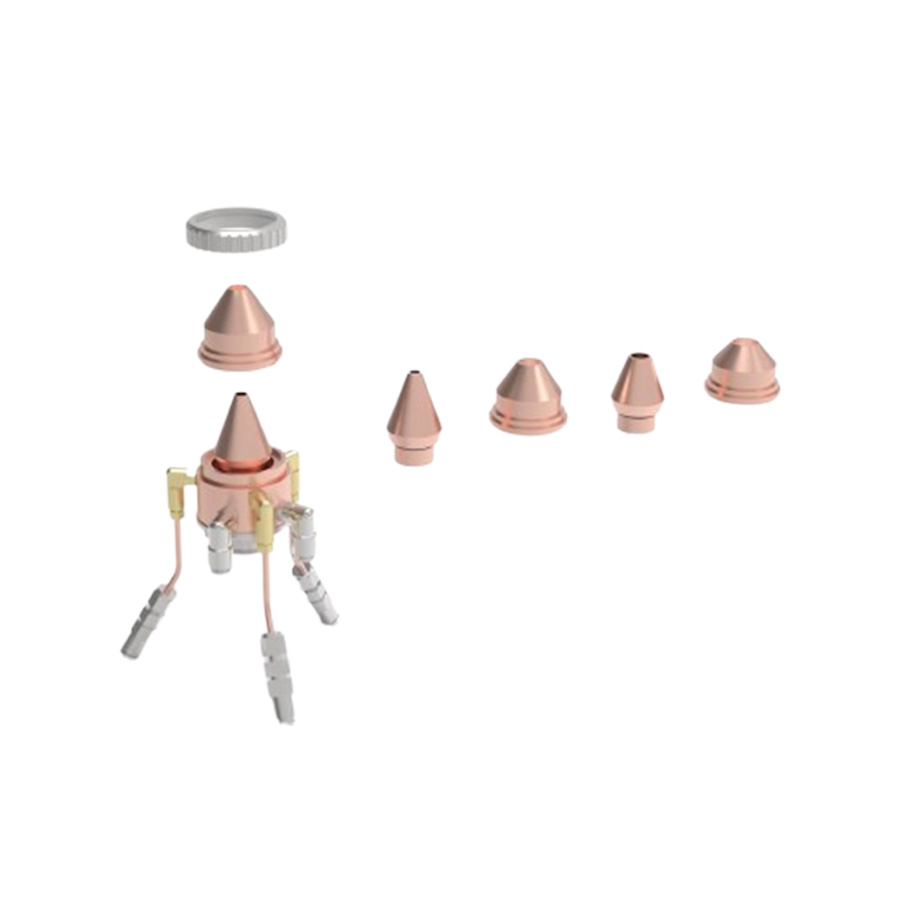

This series of nozzles features a split structure with inner and outer barrels connected by threads, enabling easy disassembly and assembly with simple tools for convenient operation. They offer excellent material adaptability: the standard version is made of high-temperature-resistant copper, with an optional electroplated wear-resistant coating to withstand complex working conditions involving high temperatures and heavy abrasion.

A wide range of flexible specifications is available. Inner and outer barrel assemblies are offered with powder focus diameters of 1.0 mm, 2.0 mm, 3.0 mm, and powder focus distances of 8 mm, 10 mm, 15 mm to meet diverse application requirements.

Furthermore, the nozzle adopts an optimized sealed water circuit design integrated with a high-flow water cooling system. Its cooling efficiency is significantly improved compared with monolithic nozzles, ensuring stable continuous operation and preventing performance degradation caused by thermal deformation.

>>Product Features

1、Modular Design for Easy MaintenanceInner and outer tubes can be quickly disassembled and separated. There is no need to replace the entire nozzle, which greatly shortens maintenance time and lowers operation costs. Polishing, inspection and parts replacement become simpler, effectively reducing equipment downtime.

2、Flexible Adaptability, One Nozzle for Multiple PurposesCompatible with interchangeable inner and outer tubes of various specifications to flexibly adjust powder focus diameter and powder spot morphology. It meets diverse process requirements including precision repair, large-area cladding and composite material cladding.

3、Process Optimization & Stable PerformancePrecisely regulates powder flow field distribution to enhance the uniformity and bonding strength of cladding layers. High-precision docking between modules ensures stable powder feeding and reduces powder splashing.

4、Cost-Effective with Long-Term BenefitsAdopts partial component replacement rather than integral scrapping of consumables, significantly cutting operating costs. Compatible with multiple equipment models, delivering strong support for flexible upgrading of production lines.

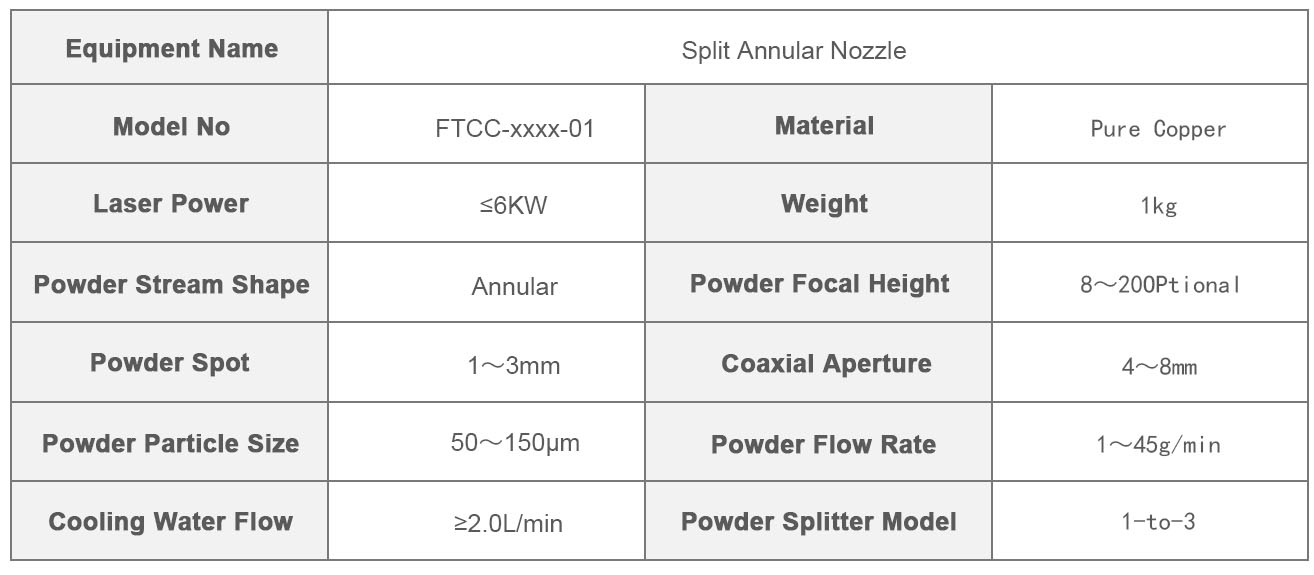

>>Product Parameters

>>Application Scenarios

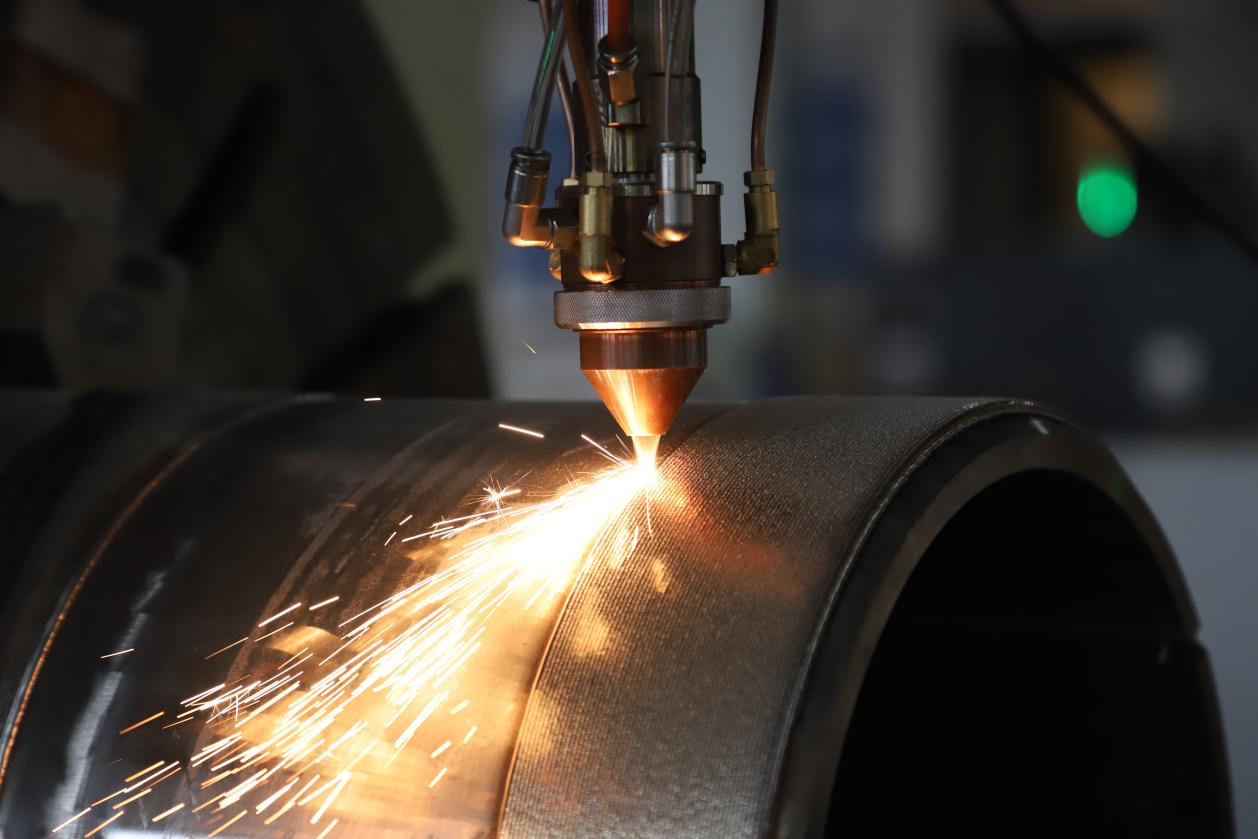

This series of nozzles can be applied in the fields of laser cladding and remanufacturing to realize workpiece repair, surface strengthening and functional coating preparation. Compatible with flexible production featuring multiple product varieties and small batch sizes, they enable rapid switching of process parameters to meet requirements for different materials and coatings. Benefiting from flexible adjustability of powder spot characteristics, the nozzles support experimental verification and parameter optimization for scientific research and process development. Meanwhile, they are suitable for laser additive manufacturing scenarios involving special materials such as high-temperature alloys and composite materials, fully catering to diverse customized processing demands.
